Professional Service, Products and Integrity since 1936

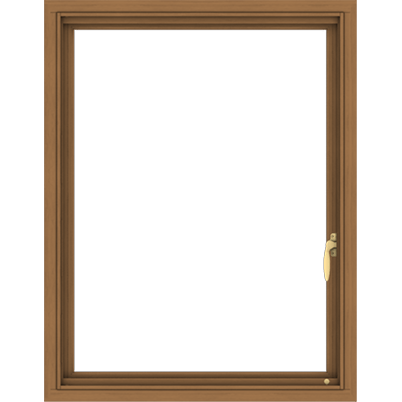

Andersen E-Series Push-Out Casement Window

Width

Height

Interior Wood or Stain

Hardware

Hardware Color

Grille

Exterior Color

Exterior Trim

Glass

Product price: $0.99
Total options:
Order total:
Categories: ,

The E-Series push out casement window is fully customizable and made-to-order in nearly any color, interior wood species or finish. With a virtually maintenance-free aluminum exterior, the E-Series push out casement provides old-world style with simple operation – just pull the lock handle up and push the window out.

  • Old-world style with simple operation – simply pull the lock handle up and push the window out
  • Stainless steel hinges allow this window to open up to 60°
  • Innovative wood-veneered insect screens, including a hinged option that opens to the interior or a retractable screen for an unobstructed view
  • Standard sizes up to 3′ wide and 6′ high. Custom sizes available.
Unlimited Possibilities

Custom Colors, Interior Woods and Stains

Energy Efficiency

It’s built into every window. We have options to help you meet the performance level you need.

What’s It Made Of?

Wood with an aluminum exterior to resist water and seal out the elements. Learn more about materials.

Want more details on the Anderson E-Series Push Out Casement Window? Click here to learn more!

Lock Handle

Antique Brass, Black, Oil Rubbed Bronze, Satin Chrome, White, Polished Brass

Insect Screen Pulls

Antique Brass, Black, Oil Rubbed Bronze, Satin Chrome, White, Polished Brass

Grille Type

Full Divided Light

Give any window an authentic look with full divided light grilles that are permanently applied to the interior and exterior of your window with a spacer between the glass.

Simulated Divided Light

An economical solution with traditional beauty, our Simulated Divided Light features fixed exterior and interior grilles without an internal spacer.

Removable Interior Wood Grilles

Our removable wood grilles are installed on the interior surface. They are available with an optional surround and an optional permanently applied exterior grille.

Finelight™ Grilles- Between-the-Glass

Aluminum grilles conveniently placed between two panes of glass make the glass easy to clean inside and out.

Grille Profiles

Interior Wood: Ovolo (Colonial)

Width

  • 5/8″
  • 7/8″
  • 1 1/8″
  • 1 1/2″
  • 2 1/4″

Available with:

  • Full Divided Light
  • Simulated Divided Light
Interior Wood: Contemporary

Width

  • 5/8″
  • 7/8″
  • 1 1/8″
  • 1 1/2″
  • 2 1/4″

Available with:

  • Full Divided Light
  • Simulated Divided Light
Exterior Aluminum: Chamfer

Width

  • 5/8″
  • 7/8″
  • 1 1/8″
  • 1 1/2″
  • 2 1/4″

Available with:

  • Full Divided Light
  • Simulated Divided Light
  • Removable Interior Wood with Optional Permanently Applied Exterior Grille
Exterior Aluminum: Contemporary

Width

  • 5/8″
  • 7/8″
  • 1 1/8″
  • 1 1/2″
  • 2 1/4″

Available with:

  • Full Divided Light
  • Simulated Divided Light
  • Removable Interior Wood with Optional Permanently Applied Exterior Grille
Removable Interior Wood Grilles

Ovolo or Contemporary profiles in 7/8″ width

Finelight Grille Profiles and Widths

Flat or Contoured profiles in 5/8″ or 1″ widths

Grille Patterns

Prairie

Diamond

Colonial

Fractional

Victorian

Custom

Andersen gives you complete flexibility to design your own custom grille style. You sketch it, our craftsmen will create it.

Exterior Trim Profile

2″ Brick Mould

2″ Brick Mould w/ Sill Nose

2″ Ovolo Brick Mould

2″ Ovolo Brick Mould w/ Sill Nose

3.5″ Backband and Bead Casing

3.5″ Backband and Bead Casing w/ Sill Nose

3.5″ Brick Mould

3.5″ Brick Mould w/ Sill Nose

3.5″ Flat Casing

3.5″ Flat Casing w/ Sill Nose

5.5″ Flat Casing

5.5″ Flat Casing w/ Sill Nose

Interior Trim

Wood Casings

A subtle touch around the perfect window or door makes your view even more special.Shown above, from top to bottom:

  • ½” and 3 ¼” Fluted Casing
  • 11/16″ and 2 ¼” Colonial Casing (WM366)
  • 11/16″ and 2 ¼” Colonial Casing (WM356)
  • 11/16″ and 2 ¼” Ranch Casing (WM324)
Plinth Blocks

Add plinth blocks at the corners for just the right touch of detail.

  • 2 ½” and 3 ½” plinth blocks shown

Exterior Trim

2-, 3- & 4-Tone Exteriors

Mix and match up to four of our 50 exterior colors.

2″ and 1 1/2″

2” brick mould and 1 ½” sill nose shown on casement.

3 1/2″ and 1 1/2″

3 ½” backband & bead casing and 1 ½” sill nose shown on double-hung.

5 1/2″ and 1 1/2″

5 ½” flat casing and 1 ½” sill nose shown on casement.

2″ and 1 1/2″

2” ovolo brick mould and 1 ½” deep sill nose shown on double-hung.

3 1/2″ and 1 1/2″

3 ½” brick mould and 1 ½” deep sill nose shown on double-hung.

Glass Performance Ratings

Product Name
U-FACTOR
How well a product prevents heat from escaping.
SHGC
SHGC, or Solar heat gain coefficient, is how well a product blocks heat caused by sunlight.
LIGHT TRANSMITTANCE
How much visible light comes through a product.
UV PROTECTION
How well a product blocks ultraviolet rays.
SmartSun™Provides the benefits of Low-E glass, plus helps shield your home from the sun's heat and filters out 95% of harmful UV rays while letting sunlight shine through.
SmartSun with HeatLock™ CoatingAll the benefits of our SmartSun™ glass, with HeatLock® coating applied to reflect heat back into the home for improved thermal performance.
Low-E4®/Low-EReflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.
Low-E4 with HeatLock™ CoatingAll the benefits of our Low- E4® glass, with HeatLock® coating applied to reflect heat back into the home for improved thermal performance.
SunOffers outstanding thermal performance with a subtle tint that blocks out even more heat from the sun.
PassiveSun®If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.
Triple PaneAn extra pane of glass helps keep more heat in and cold air out, making this our most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.

Learn more about glass options.

Decorative/Specialty Glass

Safety Glass

Tempered safety glass is available on all products, and comes standard on all patio doors.

Laminated Glass

Laminated glass is also available, for added strength, enhanced security and sound control.

Sound-Reducing Glass

This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

Art Glass

Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

Patterned Glass

Let in light while obscuring vision and adding a unique decorative touch to your home.

Insect Screens

Hinged insect screen opens to the interior, providing access to the lock handle. Choose from charcoal fiberglass or aluminum screen mesh. Available in wood-veneered options. Insect screen pulls are available in six finishes.

Retractable Insect Screen

Made specifically for casement and awning windows, this insect screen is a sleek addition to any home. In place, the insect screen helps keep insects out. When retracted, it provides a beautiful clear view.
