Entertain more easily by connecting your outdoor deck, pool or patio to the inside of your home with a pass-through window. The space-saving designs serve as an important access point from one space to another. These multi-functional windows occupy less space than an open door but still offer ample convenience, ventilation and natural light.
- Traditional and contemporary panel designs fit any architectural style
- Folding or sliding operation maximizes clear opening
- A flush sill creates a seamless transition between indoors and out
- Meet performance requirements with thermally controlled panels, performance sills or triple-pane glass
Want more details on the Anderson Pass-Through Window? Click here to learn more!
Pass-Through Window Types

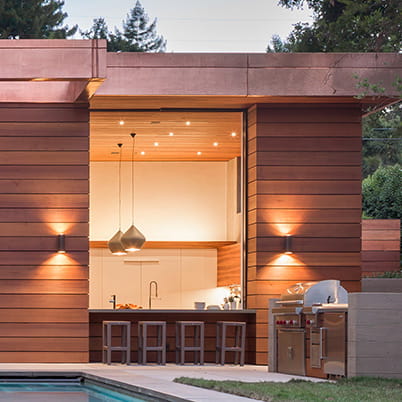

Exterior view shown.
MultiGlide™
MultiGlide pass-through windows slide on continuously-adjustable synthetic rollers for a smooth, whisper-quiet operation. Their flush hardware allows them to stack or pocket into the wall for a wide-open space. Add automation and open your pass-through window with the touch of a button. Minimum Door Unit Size Availability: 58 1/8” Wide x 47 1/2” High
Liftslide
Liftslide pass-through windows provide near effortless operation with custom hardware that lifts the panels and allow the window to roll smoothly along the flush track. Unlimited design possibilities, including corner and curved configurations, allow you to create a truly unique space. Minimum Door Unit Size Availability: 48” Wide x 36” High

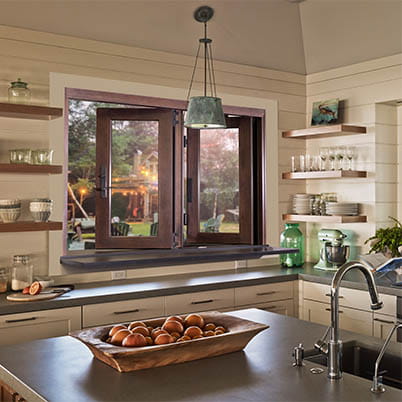

Folding
Folding pass-through windows fold easily to the side and virtually out of sight. Panels can fold to the right, left or to both sides and can be left partially open when desired. Minimum Door Unit Size Availability: 38 5/16” Wide x 41 7/16” High
Use this convenient comparison chart to determine which pass-through window style is right for you.
MultiGlide™ Sill Options
Two sill options are available, drainage sill and flush sill. Both sills are made of heavy-duty extruded 6005-T5 aluminum providing strength and rigidity. The drainage sill is designed with built-in drainage channels, spaced out every 17″ to 24″ depending on overall width, to manage water. Available in clear or dark bronze anodized finishes.
Flush Sill
Flush sill is designed to project only 3⁄16″ above the finished surface, creating a seamless transition from inside to outside. Available in a clear anodized finish.
Drainage Sill: Raised Threshold
An optional raised threshold for drainage sill enhances performance to a PG30 rating for sizes up to 8′ tall.**
Drainage Sill: Exterior Ramp
Exterior ramp option for drainage sill provides easy accessibility.
Drainage Sill: Interior Ramp
Interior ramp option for drainage sill provides easy accessibility. * Cannot be used with optional raised threshold.
Liftslide Sill Options
Flush Track with Transverse Drains
Certified under AAMA/WDMA/CSA 101/1.S.2/A440 testing protocol for operating force, air leakage resistance, water penetration resistance, uniform load deflection, uniform load structural, and forced entry resistance.
Patented Flush Drainage Track
With a built-in marker to make sure the smooth surfaced is installed at exactly 3/16″ below the top and along the entire length of the track.
Folding Window Sill Options
Drainage Sill
The drainage sill offers a PG40* rating for sizes up to 24′ wide and 8′ tall and PG30 rating for sizes up to 24′ wide and 10′ tall. Available in painted gray or dark bronze.
*Performance Rating: Class SP-PG40 Size Tested 159 x 95.5 in with standard sill. DP = +40psf/-40psf. Class SP-PG30 Size Tested 159 x 119.5 in with standard sill. DP = +30psf/-30psf.
Low-Threshold Sill
The low-threshold sill option provides easy accessibility. Available in Dark Bronze anodized and clear anodized.
Flush Sill
The flush sill option places the track even with the finished surface.
Panels are silicone bed glazed and finished with an interior stop. Ovolo (colonial) or contemporary glass stops are available on clad wood panels. Contemporary glass stops are used on aluminum panels.
High-Performance glass options include:
Dual-Pane:
- Low-E4® tempered glass
- Low-E4 HeatLock® tempered glass
- Low-E4 Sun tempered glass
- Low-E4 SmartSun™ tempered glass
- Low-E4 SmartSun HeatLock tempered glass
- Low-E4 PassiveSun tempered glass
Triple-Pane for greater energy performance:
- Low-E4 tempered glass
- Low-E4 Enhanced tempered glass
- Low-E4 SmartSun tempered glass
- Low-E4 SmartSun Enhanced tempered glass
Additional glass options are available.
