Andersen A-Series Double Hung Window

Design your window using the options below:

Width

Height

Interior Wood or Stain

Hardware

Grille

Exterior Color

Exterior Trim

Exterior Trim Color

Glass

Sash Options

Product price: $0.99
Total options:
Order total:
Add to Quote
Categories: ,

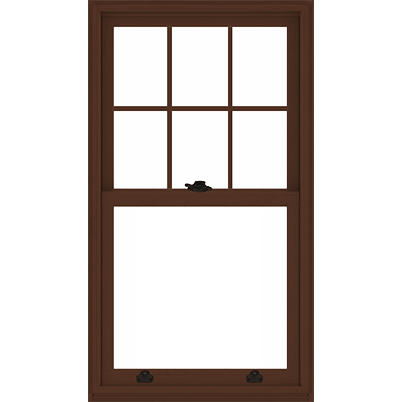

A-Series double-hung windows have two operating sash that move up and down allowing for ventilation on the top, bottom or both. The sash tilt in for easy cleaning from the inside of your home. Made of wood protected by fiberglass and Fibrex® composite material, it’s our best-performing double-hung window.

  • Our best-performing double-hung
  • Wood protected by fiberglass and Fibrex® composite material
  • Designed for architectural authenticity
  • Standard sizes up to 4′ wide and 8′ high. Custom sizes available.
Architectural Style Made Easy

Our best-performing, most energy-efficient double-hung window. Designed for architectural authenticity.

What’s It Made Of?

Choose from a variety of beautiful interior wood species, with fiberglass and composite exteriors that won’t peel, blister, fade or corrode, and resist water while sealing out the elements. Learn more about our materials.

Energy-Saving Glass and Design

We have options to help you meet the performance level you need. Select Andersen® A-Series windows are recognized as Most Efficient of ENERGY STAR® in 2019. Specific glass options apply. Learn More.

Want more details on the Anderson A-Series Double-Hung Window? Click here to learn more!

Hardware Type

Lock and Keeper

Antique Brass, Black, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Polished Chrome, Satin Nickel, Stone, White

Additional Options

Optional Lift Hardware: Traditional

Antique Brass, Black, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Polished Chrome, Satin Nickel, Stone, White

Optional Lift Hardware: Contemporary Bar Lift

Antique Brass, Black, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Polished Chrome, Satin Nickel, Stone, White

Opening Control Device

Window Opening Control Device Kits limit opening the sash to less than 4″ (102mm) when the window is first opened.

Grille Type

Full Divided Light

Give your window an authentic look with grilles that are permanently applied to the interior and exterior of your window with an aluminum spacer between the glass.

Spacer Option for Greater Energy Efficiency The Energy Spacer option is available to help A-Series products with full divided lights and SmartSun™ glass be ENERGY STAR® certified in the Northern climate zone. Its narrow design creates a 3mm gap around the spacer, helping to lower U-Factor values.

Simulated Divided Light

Simulated divided light offers permanent grilles on the exterior and and a choice of permanent or removable wood interior grilles, with no spacer between the glass.

Removable Interior Grille

Removable interior wood grilles are secured via a fastener or grille clip and can be removed enabling you to easily clean the glass surface.

Finelight Grilles Between-the-Glass

Finelight™ grilles are suspended between the panes of glass, allowing you to easily clean both the inside and outside of your windows and doors.

Grille Patterns

Colonial

Colonial (Top Sash Only)

Prairie

Prairie (Top Sash Only)

Diamond

Diamond (Top Sash Only)

Specified Equal Light

Specify number of same-size rectangles across or down.

Custom Patterns

Andersen gives you complete flexibility to design your own custom grille style. You sketch it, our craftsmen will create it.

Exterior Trim Profile

2″ Brick Mould

2″ Brick Mould w/ Sill Nose

3.5″ Flat

3.5″ Flat w/ 2″ Cornice Top

3.5″ Flat w/ 3 5/8″ Cornice Top

3.5″ Flat w/ Extended Sill

3.5″ Flat w/ Extended Top

3.5″ Flat w/ Extended Top and Sill

3.5″ Flat w/ Sill Nose

4.5″ Flat

4.5″ Flat w/ 2″ Cornice Top

4.5″ Flat w/ 3 5/8″ Cornice Top

4.5″ Flat w/ Extended Sill

4.5″ Flat w/ Extended Top

4.5″ Flat w/ Extended Top and Sill

4.5″ Flat w/ Sill Nose

Trim Styles

2″ Brick Mould

3.5″ Flat

4.5″ Flat

Head Trim Profiles

Decorative Drip Cap

2″ Cornice

3 5/8″ Cornice

Glass Performance Ratings

Product Name
U-FACTOR
How well a product prevents heat from escaping.
SHGC
SHGC, or Solar heat gain coefficient, is how well a product blocks heat caused by sunlight.
LIGHT TRANSMITTANCE
How much visible light comes through a product.
UV PROTECTION
How well a product blocks ultraviolet rays.
SmartSun™Provides the benefits of Low-E glass, plus helps shield your home from the sun's heat and filters out 95% of harmful UV rays while letting sunlight shine through.
SmartSun with HeatLock™ CoatingAll the benefits of our SmartSun™ glass, with HeatLock® coating applied to reflect heat back into the home for improved thermal performance.
Low-E4®/Low-EReflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.
Low-E4 with HeatLock™ CoatingAll the benefits of our Low- E4® glass, with HeatLock® coating applied to reflect heat back into the home for improved thermal performance.
SunOffers outstanding thermal performance with a subtle tint that blocks out even more heat from the sun.
PassiveSun®If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.
Triple PaneAn extra pane of glass helps keep more heat in and cold air out, making this our most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.

Learn more about glass options.

Art Glass

Classic Series

The four styles included in our Classic Series panels represent major architectural design themes from the late 1800’s through the 1930’s. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.

Artisan Series

Two designs influenced by 20th century American and European architectural schools feature striking visual patterns that evoke an extraordinary blend of art and nature.

Historic Series

—

Andersen art glass panels come in a variety of original patterns. Learn more about Andersen art glass.

Decorative/Specialty Glass

Safety Glass

Tempered safety glass is available on all products, and comes standard on all patio doors.

Laminated Glass

Laminated glass is also available, for added strength, enhanced security and sound control.

Sound-Reducing Glass

This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

Patterned Glass

Let in light while obscuring vision and adding a unique decorative touch to your home.

Insect Screens

Insect Screen

Choose full insect screen or half insect screen. Half insect screen (shown above) allows ventilation without affecting the view through the upper sash. Frames are available in colors to match product exteriors.

Conventional insect screens have charcoal powder-coated aluminum screen mesh.

TruScene® Insect Screen

Enjoy more fresh air and natural light in your home with TruScene® insect screens. This patented screen is made with micro-fine stainless steel mesh that lets in over 25% more fresh air and provides 50% greater clarity than conventional Andersen insect screens, all while keeping out unwanted small insects. Available with Stone or White frames or with pine veneer frame interiors to blend with the wood interior of the window.

Sash Options

Cottage Style

Cottage sash are based on a 2:3 ratio.

Reverse Cottage Style

Reverse cottage sash are based on a 3:2 ratio.
